ALUMINISING (Astronomical) & OPTICAL TESTING
Although this price list is specifically for astronomical mirrors we are happy to undertake the re-coating of any optical component as may be used in:
- Car head-up display units
- Printing or copy machines
- Projection mirrors
- Parabolic projector mirrors
- Collimators
We are willing to undertake the re-coating of any optical component!
We also provide a re-coating service for sextant mirrors, camera mirrors and prisms. For prices please go to our
Sextant and Camera Mirrors page or click
HERE

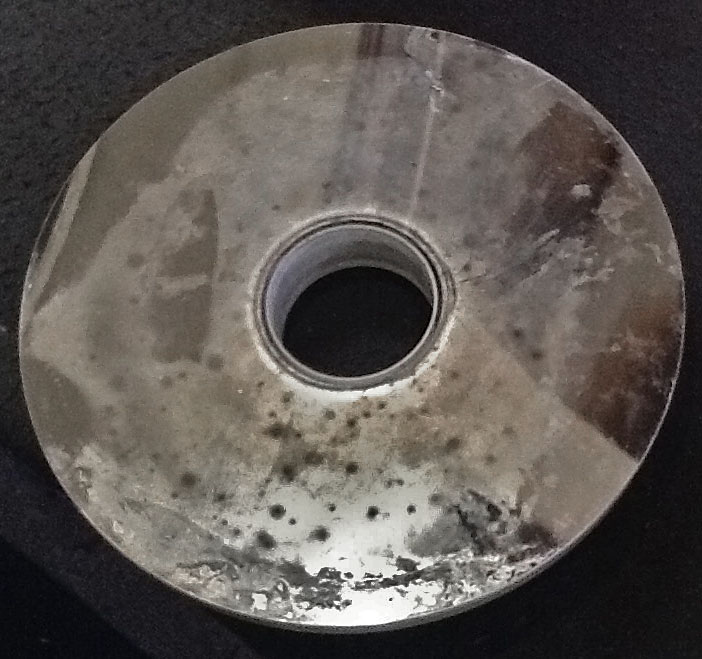

Mirrors for recoating can often look as bad as this before re-aluminising!
Aluminising Information
Prices quoted for mirrors up to 12 inches (310 mm) in diameter are for double
aluminising and silicon over-coating. Please state clearly with your order if
you do not require your mirror to be over-coated (there is no price difference).
If your mirror is being sent for re-coating, there is no charge for the removal
of the old aluminium coat. Only in very rare circumstances would a telescope
user choose an unprotected aluminium coating. There would be a three to four
percent gain in light reflection, peaking towards the blue end of the spectrum.
However, unless stored for many months to develop a natural surface hardness
(oxidisation) the coating would probably degrade very quickly in present day
atmospheric conditions.
What does double aluminising entail as mirrors are
usually only given one coating?
Once the mirror is clean and ready to coat it is
given a semi (not totally opaque) aluminium coating and overcoating. It is
then taken out of the chamber and cleaned with a pure cotton cloth and isopropyl
alcohol. This ensures the removal of any poorly adhering particles in the
aluminium coating and toughens the surface. It is then returned to the chamber
and given a second aluminium coating and overcoating. This double coating
is therefore aimed at giving the mirror as long an observing life as possible
with maximum immediate protection from atmospheric pollution.
Mirrors larger than 12 inches 300 mm) diameter are given a single coating
and overcoating in our larger chamber(s) with evaporation from multiple evaporation
points. This partly mimics the double coating of the smaller mirrors. A complete
double coating process can be carried out for these larger mirrors, but with
a sixty percent increase in cost. If you are working within a budget and do
not require maximum double coating protection as offered for the smaller mirrors,
a standard single coating run is available at a 25 percent reduction.
How long will a protected aluminium coating last?
If subjected to sea water, or sulpherous fumes, perhaps
only a few days. If used close to the sea or in an industrial area and stored
uncovered, perhaps only a year. With a close fitting, acid free cover over
the mirror, in the same circumstances perhaps two or three years. Used in
averagely polluted air (everywhere?) with a close fitting cover, perhaps four
to eight years. One way, however, to make sure you ruin the coating is to
wrap it tightly in polothene or plastic to trap in all the pollution and condensation
when not in use!
Can the coating be cleaned?
Yes.Cleaning is possible with mirrors other than plastic. We supply basic
cleaning advice with mirrors.Six months or longer after coating, correct cleaning
should toughen and harden the coating for a longer life.

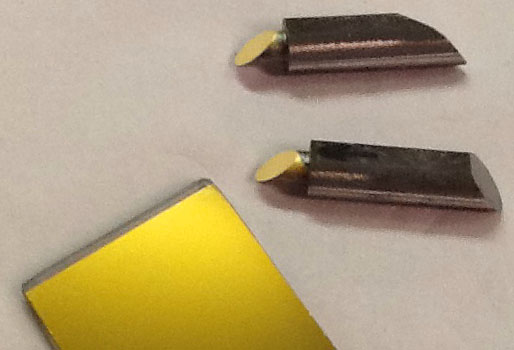

An example of our gold coatings

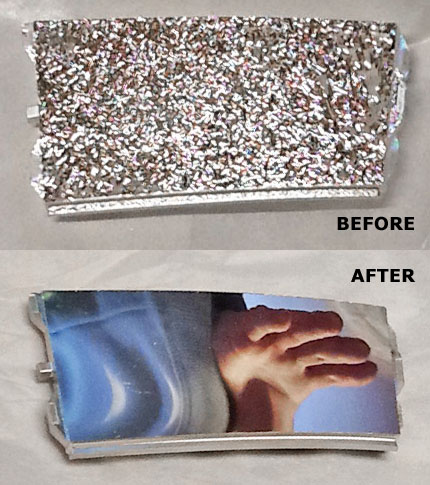

An Audi heads-up display before and after re-mirroring
Aluminising Prices
